Plastic Injection and Blow Molding Machine

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Bottle
Blow Moulding Type:
Injection Blow Moulding
Automatic:
Yes
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FOMTEC
Model Number:
FD-120C-IB
Power(W):
30kw
Dimension(L*W*H):
5.8x1.0x1.7
Weight:
450~545G
Certification:
CE;ISO9001:2001
Name:
Injection Blow Molding Machine 120TON
Warranty:
12 months on spare parts for whole machine from date of machine
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
3600 Set/Sets per Year
Packaging & Delivery
Packaging Details
EXPORT WOODEN PACKING
Port
Huangpu,China
Lead Time :
20days



FEATURES:



l Direct Hydraulic Clamping horizontal type



l   User-friendly LCD display shows various functions with 66 sets of mold memory



l  Injection and clamping controlled by multiple pressures and speeds ensure easy setting

and accurate processing



l  The P.I.D temperature control is accurate for every section



l  Dual injection and carriage design provides smooth movement and precision molding



l  Professional designed screw and barrel, suitable for various plasticizing demands



l  High torque screw motor ensures superior plasticizing ability



l  Oil-less bushings used on all moving units for better cleanness and easy maintenance



l  High-rigid frame structure assures stable and smooth sliding movement



l    Equipped with robotic arm to achieve automation production



l    A hot runner mold and common mold base design



l    Easy to operate and maintenance

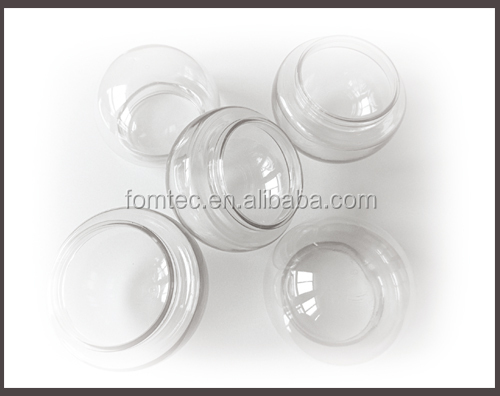

l    Machine apply to produce high-quality products such as wide mouth cosmetic container(PP,PETG,PET);Lamp shade(PC);Lactic acid drinks bottle(PS);Pharmaceutical container.

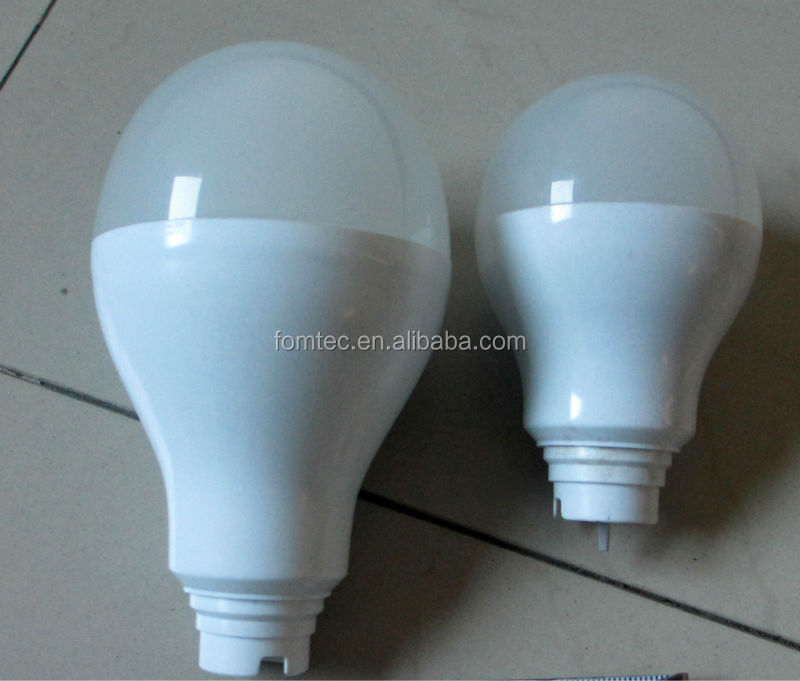

Lamp shade injection blow molding machine

Lamp-chimney injection blow molding machine

SPECIFICATION

ModelFD-120C-IB

Injection Unit
Screw Diametermmφ50φ55
Theoretical Injection Volumecm3490594
Maximum injection capacity(PS)g450545
oz1619.3
Maximum Injection Pressurekg/cm221171749
Injection Ratecm3/sec201243
Plasticizing Capacity(PS)kg/hr103124

Clamping Unit
Clamping Forceton167
Opening Strokemm640
Minimum Mold Thicknessmm550
Maximum Open Daylightmm1190
Space Between Tie-barmm460×460
Platen Sizemm690×690
Ejector Strokemm150
Ejector Forceton5.3

Blow Unit
Rotary Table Stationstation2
Rotary Table Moving Strokemm300
Blow Mold Clamping Forceton2.7
Blow Mold Opening Strokemm30-100
Maximum Blow Pressurekg/cm225

Others
Motor Powerhp(kW)40(30)
Hydaulic System Pressurekg/cm2140
Heater CapacitykW15.5
Oil Tank VolumeL630
Machine Dimension(Approx.)m5.8×1.0×1.7
Machine Weight(Approx.)ton7

plastic inijection molding machine   Bottle injection blow molding

 Bottle injection blow molding machine  injection blow machine



 Servo& Automatic plastic spoon injection molding machine

 OPTION : HYDRAULIC SERVO SYSTEM

Lamp-chimney injection blow molding Lamp shade injection blow machine



OPTION 1 : TOSHIBA SERVO



Guangdong plastic machinery

BABY NIPPLE INJECTION AND NIPPLE MOLDING

 OPTION 2 : TECHMATION BRAND SERVO

  ELECTRIC PART HYBRID SYNERGY PLASTIC MACHINE

LSR VERTICAL INJECTION MOLDING MACHINE

PRODUCT COMPOSITION



FEEDING BOTTLE INJECTION MOLDING

 FEEDING BOTTLE HORIZONTAL MACHINE

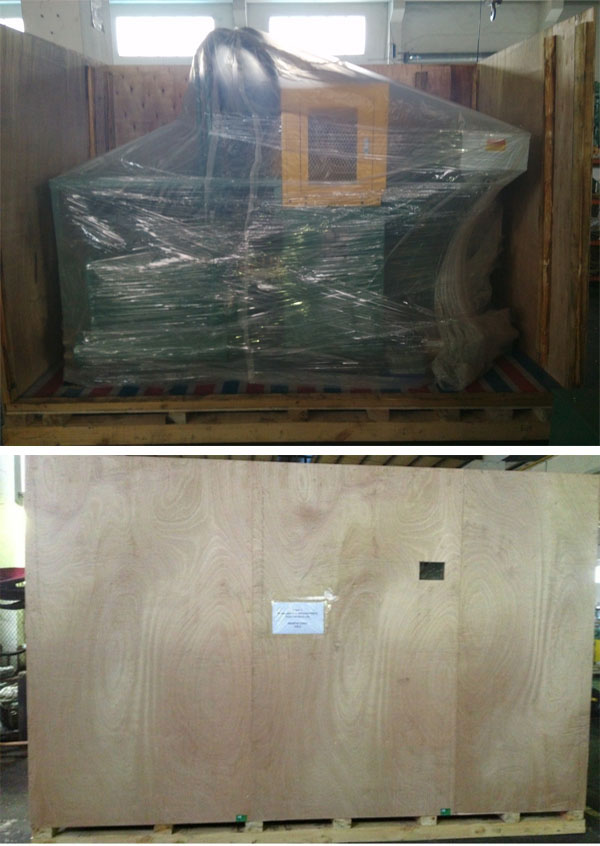

 PRODUCT PACKAGING



 plastic inijection molding machine     Low cost injection molding machine

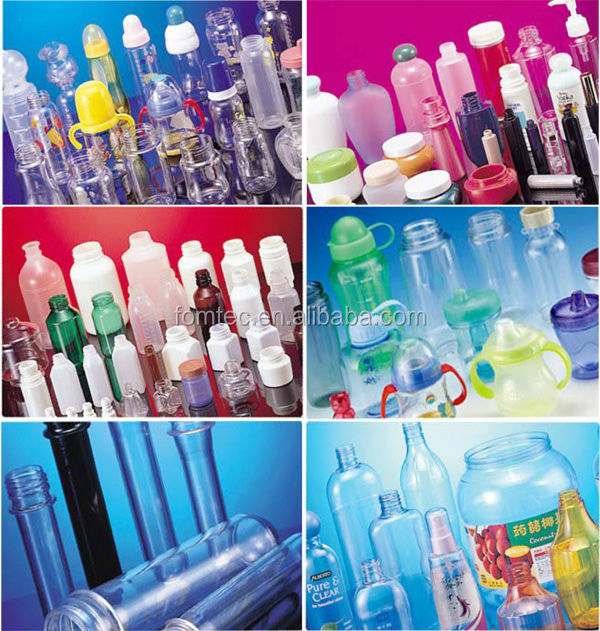

 PRODUCT APPLICATION
