Soft Tube Shoulder injection molding machine for cosmetic or toothpaste use

FOB Reference Price:Get Latest Price
US $17,000-18,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Tube Head Injection
Style:
Vertical
Brand Name:
FOMTEC
Model Number:
FT-400DS
Place of Origin:
Taiwan
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
89
Injection Rate:
55
Clamping Force:
40T
Opening Stroke:
200MM
Power(W):
7.5KW
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
WOODEN
Port
GUANGZHOU
Lead Time :
45-60 DAYS



tube head vertical injection molding machine(plastic machine ,rubber injection machine ) duble sliding table easily switch tow bottom parts for injection and picking up the finished product at same time. Operation safely, coul upward the processing efficiency 30-50%

Equipped with air valve to ejection the products by blowing

good for all kinds of head/caps for soft tube and jar.









FEATURES:

 vertical injection molding machine price , servo plastic injection molding machinery

l  Vertical clamping and injection design, especially suitable for the insert molding production

Plastic Injection Molding MACHINE, SMALL VERTICAL INJECTION MOLDING MACHINE

l Dual sliding platen, effective to increase production flexibility and machine safety factor

SERVO VERTICAL MOLDING MACHINE,DOUBLE SHUTTLE INJECTION MACHINE

l  User-friendly LCD display shows various functions with 66 sets of mold memory

TOOTH PASTE TUBE PLASTIC TUBE HEAD,SOFT TUBE HEAD AND SHOULDER,OVER MOLDING INJECTION

l  Injection and clamping controlled by multiple pressures and speeds ensure easy setting

     and accurate processing

AUTOMATIC SOFT TUBE HEADING,AUTOMATIC SCREW DRIVER INJECTION,LAMINATED TUBE PLASTIC HEADING

l  The P.I.D temperature control is accurate for every section

VERTICAL INJECTION MOLDING MACHINE,SHUTTLE TABLE INJECTION MACHINE

l  Dual injection and carriage design provides smooth movement and precision molding

máquina de fabricación de plástico,    máquina de moldeo por inyección vertical

l  Professional designed screw and barrel, suitable for various plasticizing demands

Vertical Injection Molding Machine PRICE, plastic Injection Molding Machine PRICE

l  High torque screw motor ensures superior plasticizing ability Bakelite machine for plastic

máquina de moldeo por inyección de plastic,    mesa corrediza

l  Oil-less bushings used on all moving units for better cleanness and easy maintenance

Vertical Injection Molding Machine PRICE, plastic Injection Molding Machine PRICE

l  High-rigid frame structure assures stable and smooth sliding movement

 Rotary table injection machinery, shoes sole molding machin









  SPECIFICATION

DESCRIPTIONUNITFT-400KDS

INJECTION UNIT
 Screw Diameter mmφ28φ32φ36
 Maximum Injection Pressurekg/cm2200015311210
 Theoretical Shot Volumecm37497122
 Maximum Shot WeightPSg(oz)68(2.4)89(3.1)113(4.0)
 Injection Ratecm3/sec425570

CLAMPING UNIT
 Clamping Forceton40
 Top Platen Sizemm550×395
 Shuttle Table Sizemm390×820
 Shuttle Strokemm420
 Mold Sizemm410×255
 Minimum Mold Thicknessmm150/250
 Opening Strokemm200
 Open Daylightmm350/450
 Ejector Forceton1.5
 Ejector Strokemm55



  OPTION : HYDRAULIC SERVO SYSTEM



1



OPTION 1 : TECHMATION BRAND SERVO

2





OPTION 2 : TOSHIBA SERVO

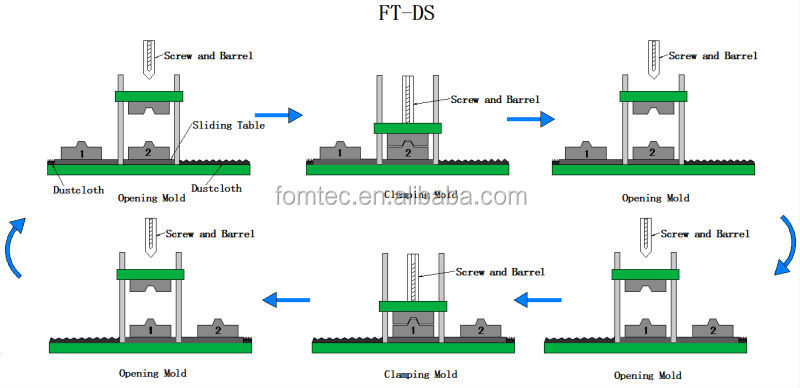

PRODUCT COMPOSITION



FT-DS





PRODUCT PACKAGING

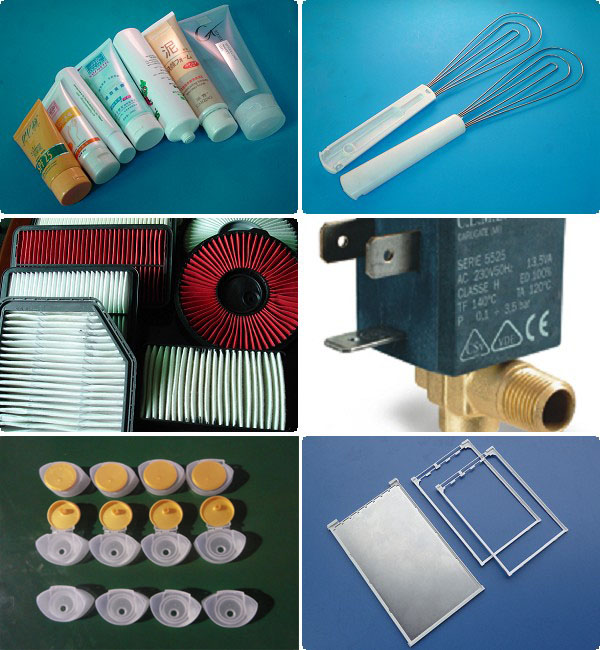

PRODUCT APPLICATION



FT-DS





INSPECTION CERTIFICATION





EXISTING CUSTOMERS





FACTORY TRAVEL









GLOBAL SERVICES
