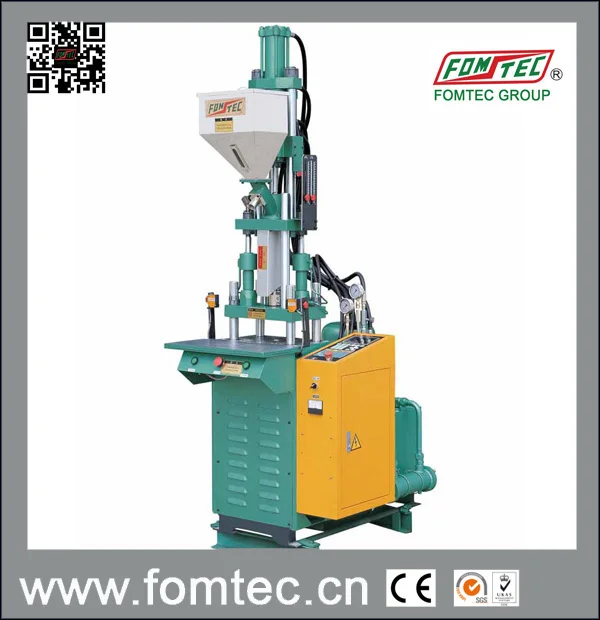

Micro Vertical Plastic Injection Molding Machine(15TON)

FOB Reference Price:Get Latest Price
Report Suspicious Activity
Overview
Quick Details
Clamping Force:
13 tons
Condition:
New
Type:
Preform Injection
Style:
Vertical
Brand Name:
FOMTEC
Model Number:
FT-150
Place of Origin:
Guangdong, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
35/45 g
Injection Rate:
35/45 cm³/sec
Opening Stroke:
160 mm
Power(W):
5.5(4) kW
Certification:
CE ISO9001
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
3600 Set/Sets per Year
Packaging & Delivery
Packaging Details
Export Wooden Packing
Port
Guangzhou,China
Lead Time :
Shipped in 30 days after payment
PRODUCT DESCRIPTION

  Main Features

Vertical clamping and injection design,especially suitable for the insert molding production.
SMALL VERTICAL INJECTION MOLDING MACHINE
        ● User-friendly LCD display shows various functions with 66 sets of mold memory.
Plastic Injection Molding MACHINE
Injection and clamping controlled by multiple pressures and speeds ensure easy setting and accurate processing.
máquina de moldeo por inyección vertical
        ● The P.I.D temperature control is accurate for every section.
máquina de fabricación de plástico
Dual injection and carriage design provides smooth movement and precision molding.
mesa corrediza
        ● Professional designed screw and barrel,suitable for various plasticizing demands.
 AUTOMATIC SOFT TUBE HEADING
High torque screw motor ensures superior plasticizing ability.
Vertical Injection Molding Machine PRICE
        ● Oil-less bushings used on all moving units for better cleanness and easy maintenance.
CONTAINER INJECTION & BLOW MOLDING
High-rigid frame structure assures stable and smooth sliding movement.
shoes sole molding machine

France plug injection machine

Specification For FT-150
ITEMS
UNIT
PARAMETER



INJECTION
 UNIT
Screw Diameter
mm
Φ22
Φ25
Maximum Injection Pressure
kg/cm²
1627
1260
Theoretical Shot Volume
cm³
38
49
Maximum Shot Weight(PS)
g(oz)
35(1.2)
45(1.6)
Injection Rate
cm³/sec
35
45





CLAMPING
 UNIT
Clamping Force
ton
13
Top Platen Size
mm
215×170
Bottom Platen Size
mm
440×270
Mold Size
mm
250
Minimum Mold Thickness
mm
40/90 or 140/190
Opening Stroke
mm
160
Maximum Open Daylight
mm
200/250 or 300/350
Ejector Force
ton
1.3
Ejector Stroke
mm
35




OTHERS
Hydraulic System Pressure
kg/cm²
140
Oil Tank Volume
L
80
Electric Power
hp(kW)
5.5(4)
Barrel Heating Power
kW
2
Total Wattage
kW
6
Machine Dimensions(approx.)
m
1.3×0.8×2.1
Machine Weight(approx.)
t
0.6

 lsr bottle molding machine

FILTER INJECTION MACHINE

SYSTEM OPTION

What’s Hydraulic Servo System?

vertial injection machien price

Why Should You Choose The Hydraulic Servo System?
★☆★☆★ Energy Saving


Fixed Volume Pump
Variable Volume Pump
Frequency Inverter
Servo System
Energy Saving
No
High
Normal
Very High
Cost Low
Medium
Higher
Little
High
Function
Low
Medium
Low
High
Noise
Low
High
Low
Medium
Service Cost
Low
Medium
Medium
Medium

Servo energy saving system exhausts lowest electric power during hold pressure section.

SMALL VERTICAL INJECTION MOLDING MACHINE

Servo system needs lowest electric power during cooling section.

ALL VERTICAL INJECTION MOLDING MACHINE

★☆★☆★ Fast Response&Hight Efficiency


The response time of servo system is very fast.It requires only 0.05s to reach the maximum power output.Cycle time is substantially shortened than traditional volume system.

ALL VERTICAL INJECTION MOLDING MACHINE




★☆★☆★ Precision


Servo motor can control the speed,position accuracy is very accurate.The precision of processing tolerances will be greatly improved by using hydraulic servo system.

hydraulic clamp moldign machine

over molding machine

★☆★☆★ Low Electrical And Mechanical Time Constant

electric part hybrid synergy enjection molding
★☆★☆★ Low Linear And High Initiating Voltage

lampshade injection blow molding machine

rotary table mchine,automatic machine

OPTION1:TECHMATION BRAND SERVO

plastic Injection Molding machine

OPTION2:TOSHIBA SERVO

100ton injection moulding machine,

DETAILED IMAGES

Product Composition

feeding bottle horizontal machine

Product Packaging

Packaging
Size
 (L) * (W) *  (H)
Weight
Approx. 0.7 T



Packaging Details
The normal package is wooden box which will be fumigated.We also can pack it according to customers special request.
SMALL VERTICAL INJECTION

baby nipple vertical machine

Product Application
