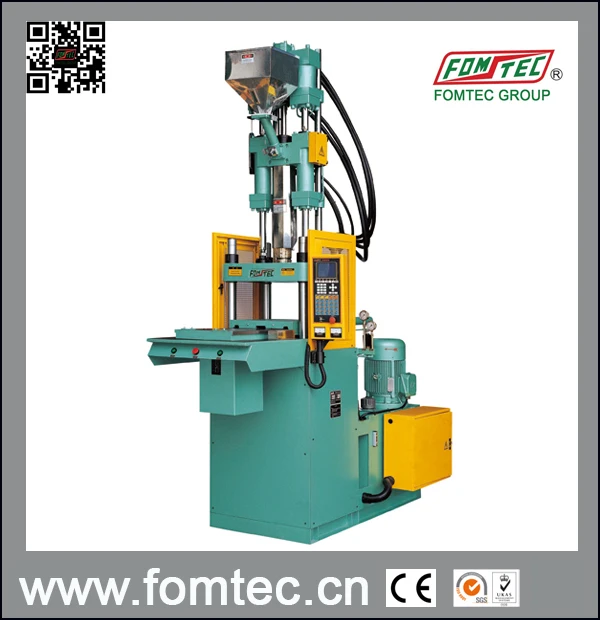

Automatic Single Sliding Table Vertical Plastic Injection Molding Machine(60TON)

FOB Reference Price:Get Latest Price
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Preform Injection
Style:
Vertical
Brand Name:
FOMTEC
Model Number:
FT-600KS
Place of Origin:
Guangdong, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
104/132/176 g
Injection Rate:
63/80/109 cm³/ sec
Clamping Force:
60 tons
Opening Stroke:
250 mm
Power(W):
10(7.5) kW
Certification:
CE ISO9001
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
3600 Set/Sets per Year
Packaging & Delivery
Packaging Details
Export Wooden Packing
Port
Guangzhou,China
Lead Time :
Shipped in 40 days after payment
PRODUCT DESCRIPTION

  Main Features

        ● Vertical clamping and injection design,especially suitable for the insert molding production.

zipper closed end injection machine

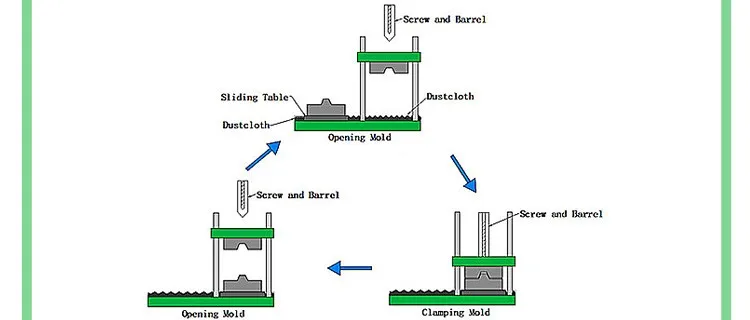

Single sliding platen,effective to increase production flexibility and machine safety factor.
automotive filter injection machine
        ● User-friendly LCD display shows various functions with 66 sets of mold memory.
automotive filter molding machine
Injection and clamping controlled by multiple pressures and speeds ensure easy setting and accurate processing.
coffe filter frame molding
        ● The P.I.D temperature control is accurate for every section.
 filter injection molding machine
Dual injection and carriage design provides smooth movement and precision molding.
liquid silicone rubber nipple
        ● Professional designed screw and barrel,suitable for various plasticizing demands.
lsr nipple molding machine
High torque screw motor ensures superior plasticizing ability.
liquid silicone rubber bottle
        ● Oil-less bushings used on all moving units for better cleanness and easy maintenance.
 lsr bottle molding machine
High-rigid frame structure assures stable and smooth sliding movement.
lamp shade injection and blow

bottle injection and blow molding

pharmaceutical btl injection & blow

container injection & blow molding

SYSTEM OPTION

What’s Hydraulic Servo System?

injection and blow molding machine

Why Should You Choose The Hydraulic Servo System?
★☆★☆★ Energy Saving


Fixed Volume Pump
Variable Volume Pump
Frequency Inverter
Servo System
Energy Saving
No
High
Normal
Very High
Cost Low
Medium
Higher
Little
High
Function
Low
Medium
Low
High
Noise
Low
High
Low
Medium
Service Cost
Low
Medium
Medium
Medium

Servo energy saving system exhausts lowest electric power during hold pressure section.

pc injection and blow machine

Servo system needs lowest electric power during cooling section.

pmma injection and blow machine

★☆★☆★ Fast Response&Hight Efficiency


The response time of servo system is very fast.It requires only 0.05s to reach the maximum power output.Cycle time is substantially shortened than traditional volume system.

pp injection and blow machine

★☆★☆★ Precision


Servo motor can control the speed,position accuracy is very accurate.The precision of processing tolerances will be greatly improved by using hydraulic servo system.

two station one step injection blow

★☆★☆★ Low Electrical And Mechanical Time Constant

plastic injection molding machine
★☆★☆★ Low Linear And High Initiating Voltage

angle type injection molding machine

bakelite injection molding machine

OPTION1:TECHMATION BRAND SERVO

plastic injection blow molding machine

OPTION2:TOSHIBA SERVO

bmc injection molding machine

DETAILED IMAGES

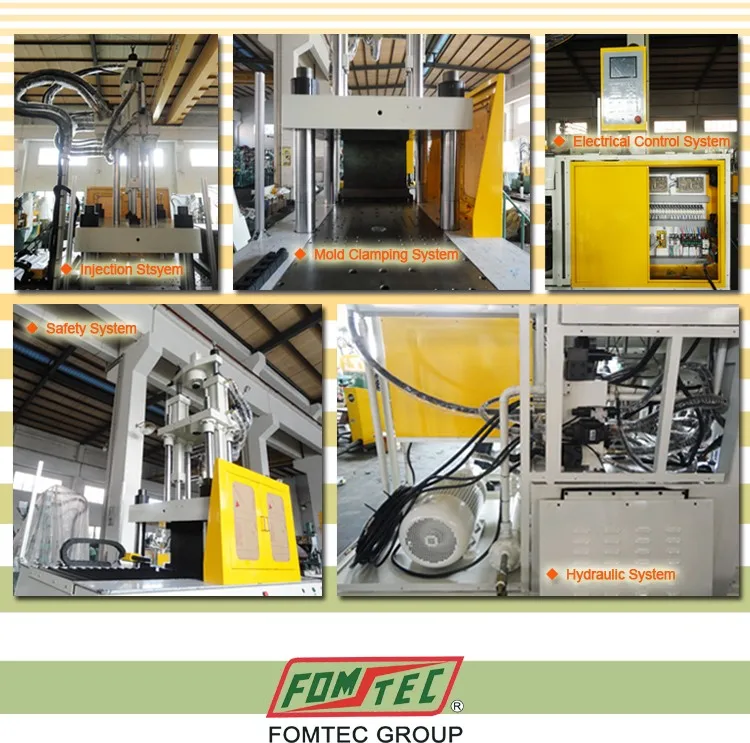

Product Composition

vertical injection molding machine manufacturer

Product Packaging

Packaging
Size
 (L) * (W) *  (H)
Weight
Approx. 2.4 T



Packaging Details
The normal package is wooden box which will be fumigated.We also can pack it according to customers special request.
vertical injection molding machine price

vertical injection molding machine price

Product Application
